Description

• Light spot: 0.8-3.5mm selectable
• Small light output center displacement and light output deflection angle
• Multiple types of single-mode fibers available

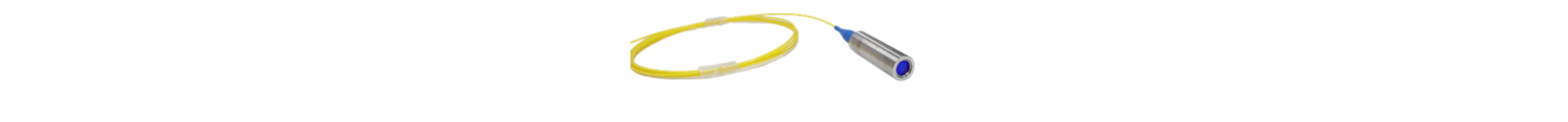

Aspheric Lenses Collimators with Fiber It adopts a compact structural design. The pigtail fiber with an inclination angle and the aspherical lens are precisely adjusted, ensuring that the emitted light presents a high-quality Gaussian beam and has excellent collimation characteristics at the same time.Anti-reflection films are coated on both the surfaces of the lens and the optical fiber, which greatly reduces the reflected light at the light-emitting end face and significantly decreases the optical noise in the optical path, making the light transmission process more stable.

The long-focal-length collimator is designed with a bent-shaped housing, which can effectively correct the light-emitting deflection angle caused by the angled pigtail fiber, ensuring that the light beam is collimated and emitted with almost no deviation. For the short-focal-length collimator, the deflection angle caused by the light output of the angled pigtail fiber is extremely small and can be almost ignored. Therefore, a straight-through housing is used. In this way, while meeting the performance requirements, it also takes into account the structural stability and reliability.

Features：

The deflection angle of the emitted light and the deviation of the emitted light center are both minuscule.

Fiber Type Options: 405HP/460HP/630HP/780HP/Hi1060/G625D

Connector Options：FC/PC、FC/APC、LC、SC、SMA905

The Type of Cable Options: PVC0.9mm/2.0mm/3mm, 3mm armored cable, 3mm Stainless steel, 0.9mmTeflon

The packaging material is 304 stainless steel, and the structure is compact and reliable.

It can be customized with a packaging structure for applications in a non-magnetic and vacuum environment.

Parameter
